Grid-tied PV Inverter

Hex Power System is a company specializing in PV inverters that developed grid-tied PV inverter since its foundation in 1998 and has developed from 3kW to 1500kW PV inverters.

Grid-tied PV plant system conceptual scheme


PV Inverter System

Monitoring

The monitoring system is configured to measure/examine the operation status of the solar cells and inverters on a remote PC/Mobile to generate an alarm in the event of an abnormal situation and to store operation data to print out various reports.

Monitoring Configuration

monitoring overview

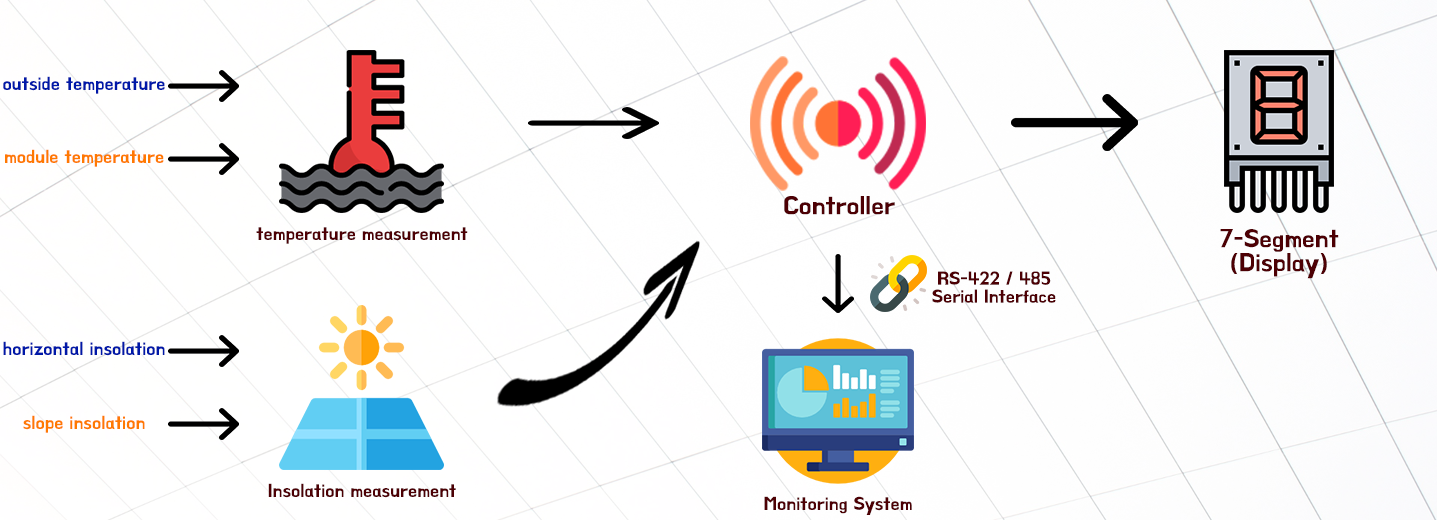

Sensor Box

The sensor box system is a device that controls the collection of external environmental information related to the solar system to display and monitor data.

Sensor conceptual scheme

sensorbox overview
