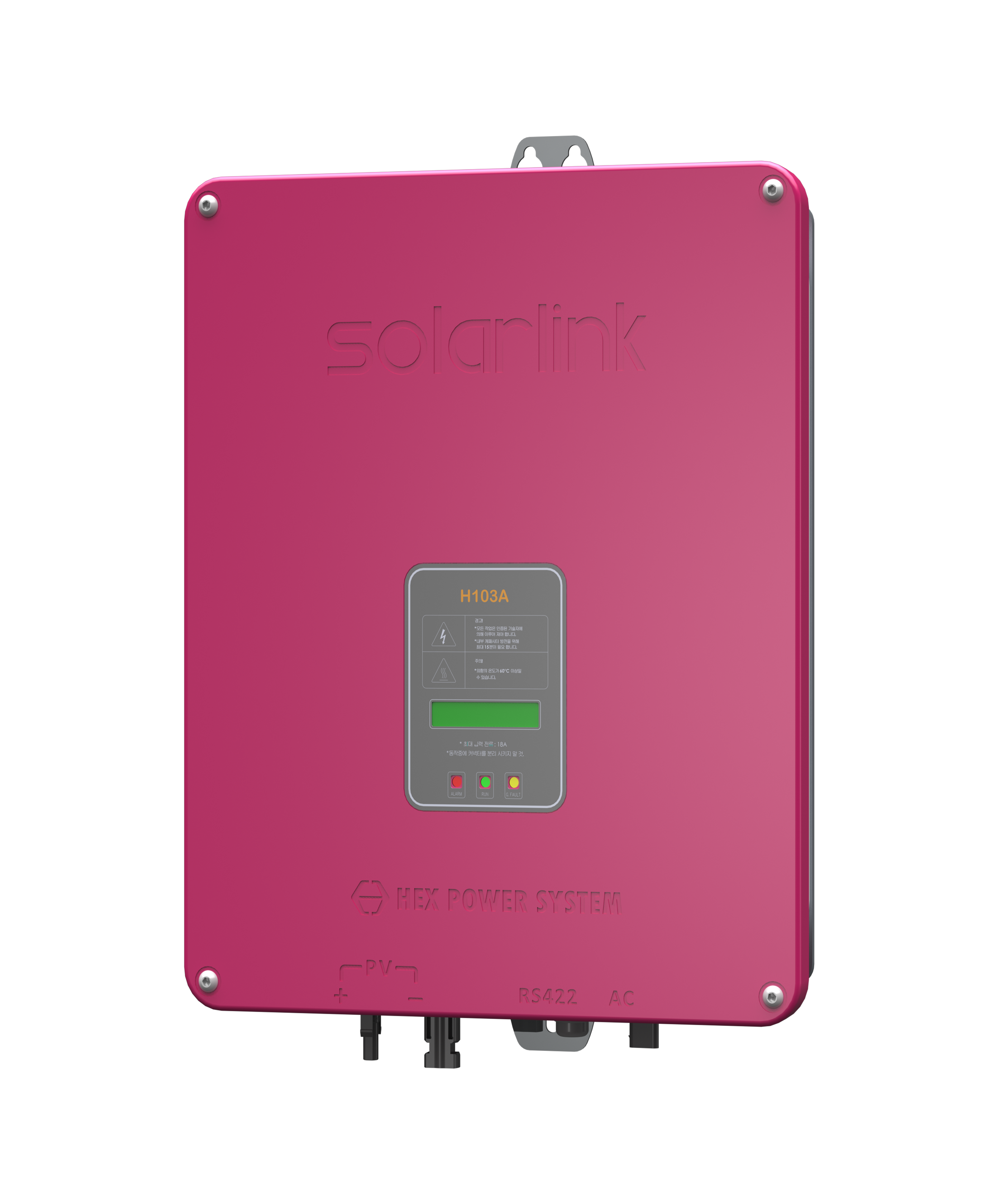

H103A Solarlink Inverter System

Category|Inverter

Spec.
  • Output Control Mode

    Grid-connected(Transformerless)

  • Input Control Mode

    MPPT(Maximum Power point Tracking)

  • Vdc Max

    DC 500V

  • Max. efficiency

    97.35%

  • MPP range

    DC 185 ~ 400V

  • Voltage range

    DC 120 ~ 500V

  • Ipv MAX

    18A

  • Capacity

    3.1kW

  • Rated Voltage

    220Vac (+10%/-12%)

  • Audible Noise

    < 25dB (1M Above)

  • Frequency rating

    50Hz(+0.5Hz/-0.7Hz)

  • THD

    < Total 5%, < 3% Individual

  • Power factor

    0.95 or higher

  • Overload

    105%

  • Vdc Min

    DC 430V

  • European efficiency

    96.44%

  • Cooling

    Natural Convection

  • Display

    Character LCD

  • Interface

    RS-422 or Rs-485, Web Monitoring(Option)

  • Operating temperature

    -20˚C ~ 50˚C

  • Enclosure IP

    IP65, Outdoor

  • Himidity

    0 ~ 95%

  • Dimensions
    (W x D x H mm)

    325 X 130 X 395

  • Weight

    11kg

  • Protection

    Input & Output Under Voltage / Over Voltage, Grid Under Frequency / Over Frequency, Output Over Current, System Over Heating Protection, Anti-Islanding Opertation

  • Certificated

    KS Certification PV-GTI-1-0125
