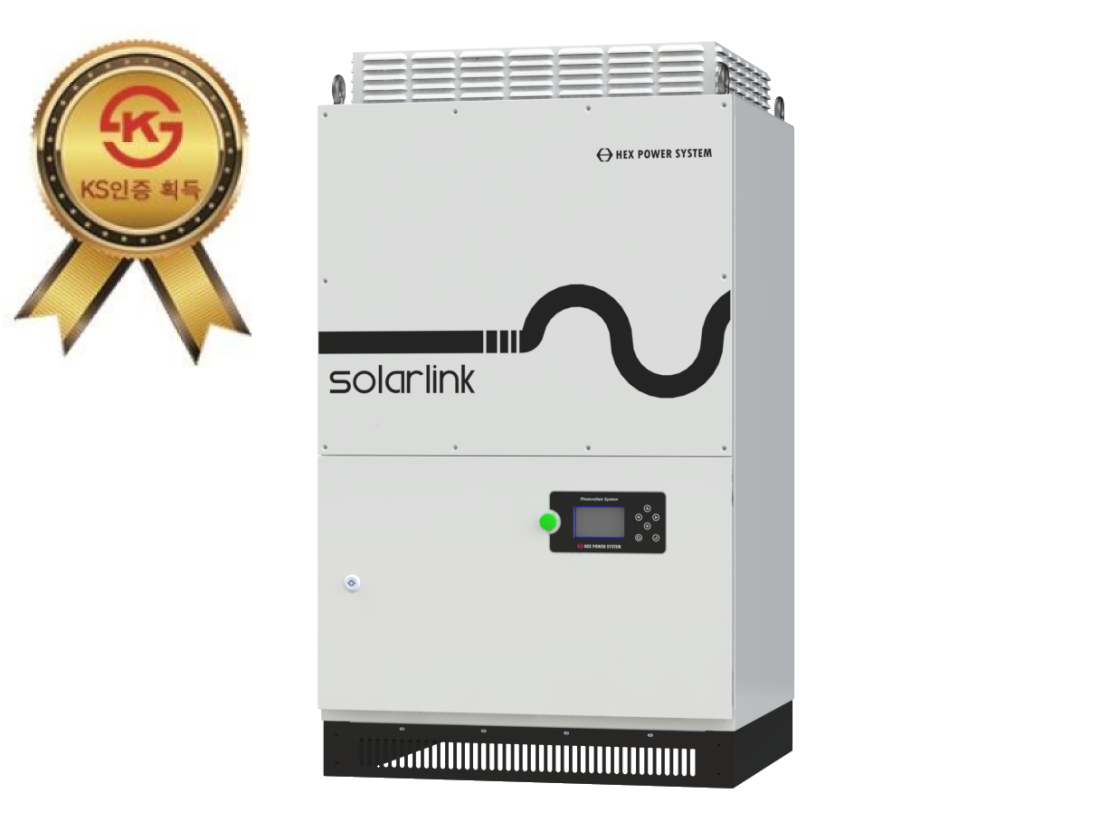

H3030SODA Solarlink Inverter System

Category|Inverter

Spec.

  • Output Control Mode

    Grid-connected(Transformer)

  • Input Control Mode

    MPPT(Maximum Power point Tracking)

  • Vdc Max

    DC 1000V

  • Max. efficiency

    96% abovec

  • MPP range

    DC 330 ~ 800V

  • Voltage range

    DC 300 ~ 1000V

  • Ipv MAX

    104A

  • Capacity

    31kW

  • Rated Voltage

    380V AC(+10% / -10%)

  • Audible Noise

    < 60dB (1M Above)

  • Frequency rating

    60Hz(+0.5Hz / -0.7Hz)

  • THD

    < Total 5%, < 3% Individual

  • Power factor

    Over 0.99 (at rated load)

  • Overload

    105%

  • Vdc Min

    DC 300V

  • European efficiency

    95.5% abov

  • Cooling

    Forced air Cooling

  • Display

    HMI (4.3inch LCD)

  • Interface

    RS-232/422 Serial Connect, Web Monitoring(Option)

  • Operating temperature

    -20˚C ~ 50˚C

  • Enclosure IP

    IP 54

  • Himidity

    0~95%

  • Dimensions
    (W x D x H mm)

    750 X 700 X 1300

  • Weight

    321kg

  • Protection

    Inverter OverVoltage/OverCurrent, Output Short Protection, Over Heating, Anti-Islanding(<0.5sec), Emergency Stop Switch

  • Certificated

    KS
