Output Control Mode

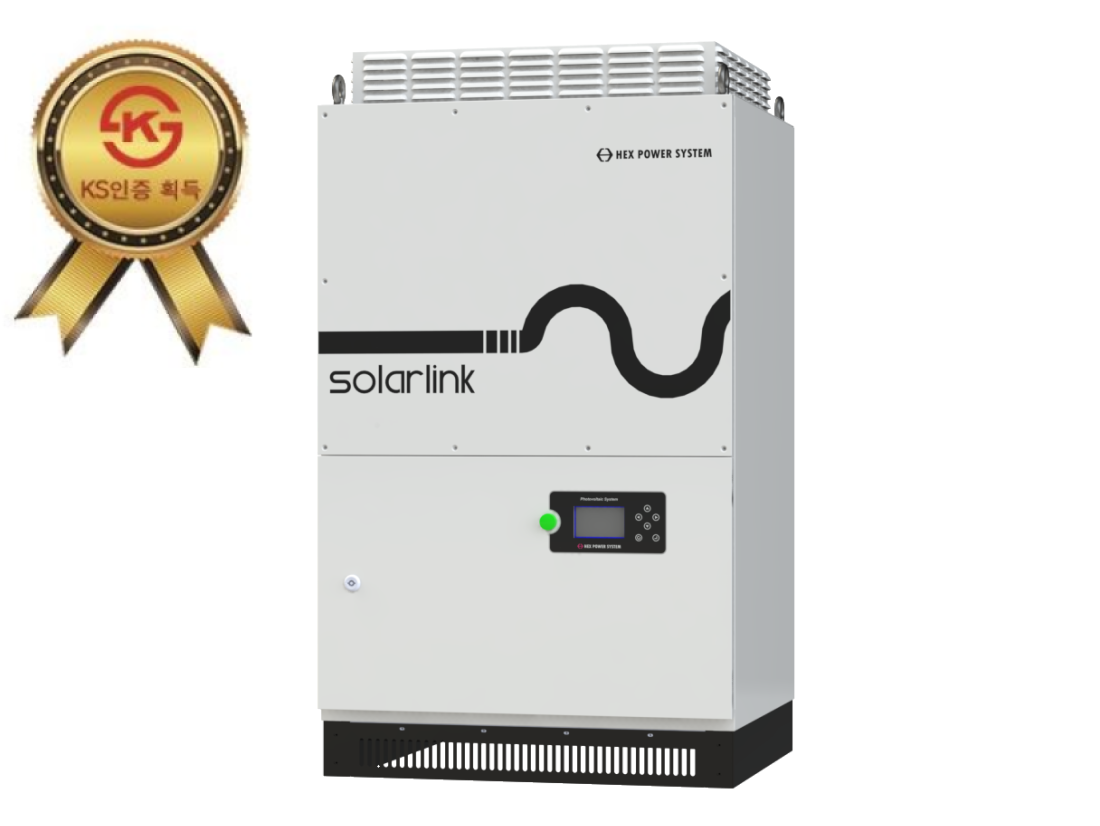

Grid-connected(Transformer)
Input Control Mode
MPPT(Maximum Power point Tracking)
Vdc Max
DC 1000V
Max. efficiency
96.06%
MPP range
DC 330 ~ 800V
Voltage range
DC 300 ~ 1000V
Ipv MAX
137A
Capacity
41kW
Rated Voltage
380V AC(+10% / -10%)
Audible Noise
< 60dB (1M Above)
Frequency rating
60Hz(+0.5Hz / -0.7Hz)
THD
< Total 5%, < 3% Individual
Power factor
Over 0.99 (at rated load)
Overload
105%
Vdc Min
DC 300V
European efficiency
95.48%
Cooling
Forced air Cooling
Display
HMI(4.3" LCD)
Interface
RS-232/422 Serial Connect, Web Monitoring(Option)
Operating temperature
-20˚C ~ 50˚C
Enclosure IP
IP 54
Himidity
0 ~ 95%
Dimensions(W x D x H mm)
750 X 700 X 1300
Weight
338kg
Protection
Inverter OverVoltage/OverCurrent, Output Short Protection, Over Heating, Anti-Islanding(<0.5sec), Emergency Stop Switch
Certificated
KS
